Simple karoo extension that shows an overlay power bar at the bottom of the screen. For Karoo 2 and Karoo 3 devices running Karoo OS version 1.524.2003 and later.

Usage

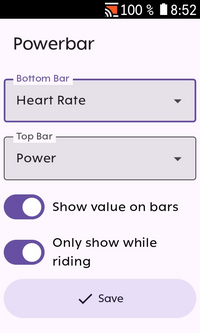

Install the app and start it from the main menu. You will be asked to grant it permission to show it on top of other apps (i. e. the karoo ride app). You can select one of the following data sources to be displayed at the bottom or at the top of the screen:

Power
Heart rate
Average power over the last 3 seconds
Average power over the last 10 seconds

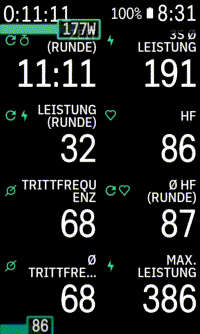

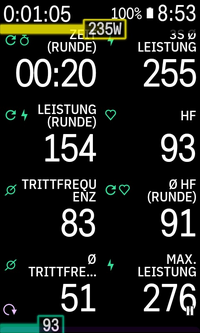

Subsequently, the bar(s) will be shown when riding. Bars are filled and colored according to your current power output / heart rate zone as setup in your Karoo settings. Optionally, the actual data value can be displayed on top of the bar.

Installation

Currently, Hammerhead has not yet released an on-device app store that allows users to easily install extensions like this. Until it is available, you can sideload the app.

Download the apk from the releases page (or build it from source)
Set up your Karoo for sideloading. DC Rainmaker has a great step-by-step guide.
Install the app by running adb install app-release.apk.

Credits

Icons by boxicons.com (MIT-licensed).

Links

karoo-ext source
